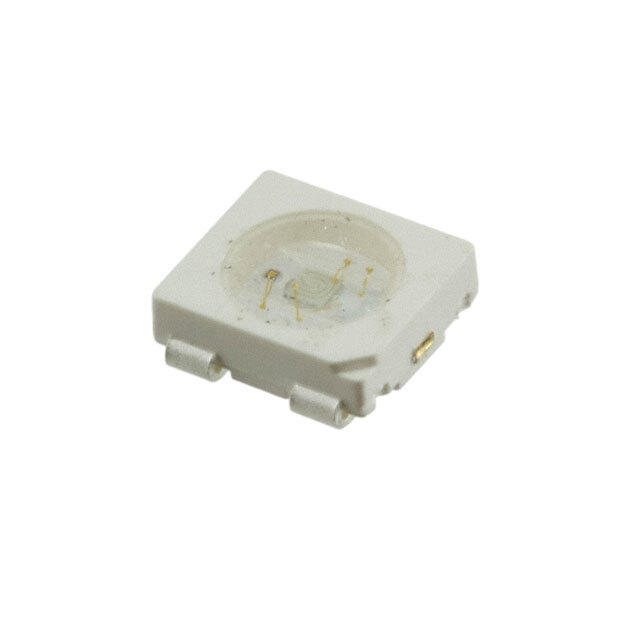

AA3535ZG25Z1S
- Manufacturer: Kingbright
- Package: SMD
- Description: LED GREEN 525NM WTR CLEAR SMD
- RoHs Status:
Specifications
| Height - Seated (Max) | 0.055" (1.40mm) |
| Color | Green |
| Part Status | Discontinued at Digi-Key |
| Flux @ Current/Temperature - Test | 20 lm (Typ) |
| Detailed Description | LED Lighting Color AA3535 Green 525nm (Typ) 4-SMD, J-Lead |
| Series | AA3535 |
| Current - Test | 150mA |
| Current - Max | 150mA |
| Voltage - Forward (Vf) (Typ) | 3.5V |
| Manufacturer | Kingbright |
| Moisture Sensitivity Level (MSL) | 2A (4 Weeks) |
| Temperature - Test | 25°C |
| Lumens/Watt @ Current - Test | 38 lm/W |
| Wavelength | 525nm (Typ) |
| Standard Package | 1 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Size / Dimension | 0.138" L x 0.124" W (3.50mm x 3.15mm) |
| Thermal Resistance of Package | 50°C/W |
| Package / Case | 4-SMD, J-Lead |
| Packaging | Cut Tape (CT) |
| Mounting Type | Surface Mount |
| Viewing Angle | 120° |
| Other Names | 754-1496-1 |
| Supplier Device Package | SMD |
